Order Online

Shop

Order DNA Curtains products and accessories directly. Secure checkout powered by Stripe.

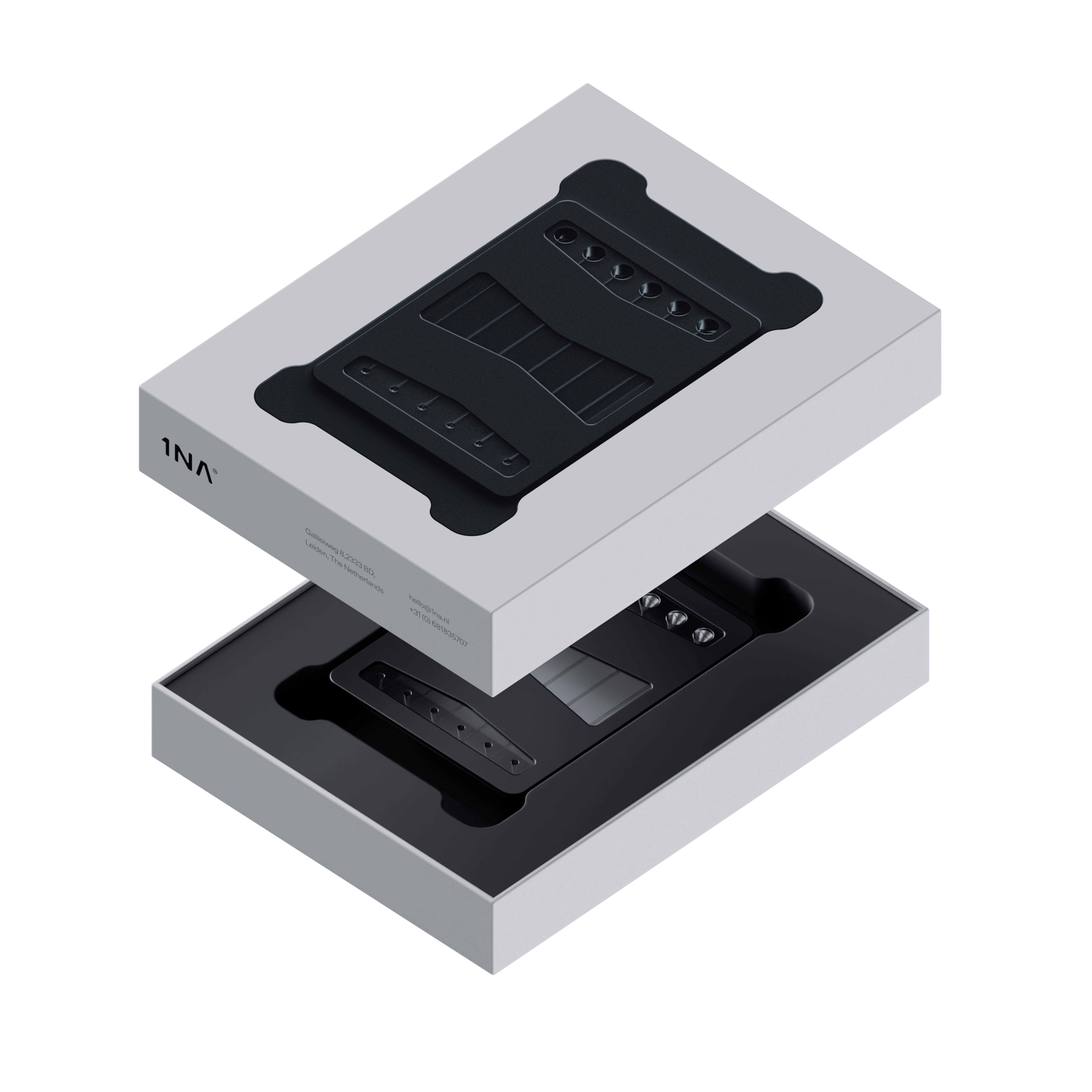

DNA Curtains Flow Cell — 1NA packaging
6
Independent channels
0.5 µL
Channel volume
100+
DNA molecules per FOV
<40 min
Setup time
DNA Curtains Inc.

DNA Curtains Flow Cell

Manufactured by 1NA — Netherlands

A precision-engineered microfluidic device for high-throughput single-molecule biophysics. Features nanofabricated diffusion barriers produced by electron-beam lithography, enabling simultaneous visualization of 100+ aligned DNA molecules on any objective-type TIRF microscope.

What's included

  • DNA Curtains Flow Cell (6-channel)
  • Detailed setup and experimental protocol
  • Email technical support
  • Certificate of quality control
  • 2-day on-site training
Order Now

Secure checkout via Stripe  ·  All major cards accepted

Need a purchase order or quote?
We support institutional purchasing and PO-based orders.
Contact Us

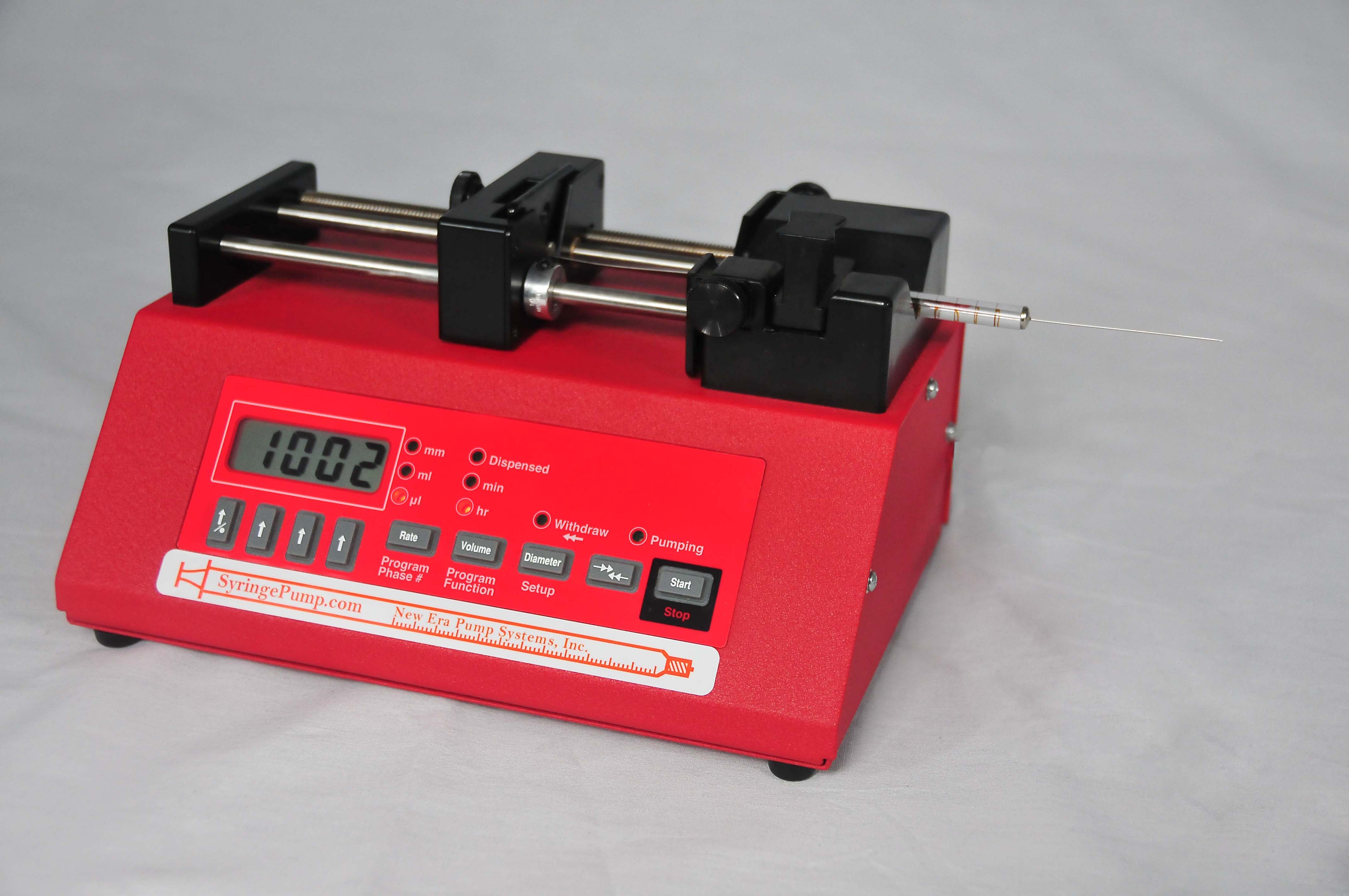

New Era NE-1002X Microfluidic Syringe Pump
0.007 nL/hr
Minimum flow rate
±0.5%
Dispensing accuracy
41
Programmable phases
2 yr
Warranty
New Era Pump Systems — Authorized Distributor

NE-1002X Microfluidic Syringe Pump

Recommended accessory for the DNA Curtains Flow Cell

The smoothest microfluidic syringe pump on the market, delivering an advance per step of just 3.96 nm for ultra-precise flow control. With a flow rate range of 0.007 nL/hr to 2,371 µL/min and ±0.5% accuracy, it is purpose-built for single-molecule biophysics experiments that demand stable, low-noise perfusion.

What's included

  • NE-1002X one-channel microfluidic syringe pump
  • Compatible with syringes from 0.5 µL up to 60 mL
  • Stand-alone keypad operation or computer control
  • Two-year warranty & unlimited technical support from New Era
$1,570 USD
Order Now

Secure checkout via Stripe  ·  All major cards accepted

Need a different model?
The NE-4002X two-channel version is available for $2,020. Other models available upon request.
Ask Us
Specifications

Key technical details

Physical

Dimensions30 × 40 × 9 mm
Weight38 g
Channels6 independent
Channel volume0.5 µL
Dead volume2 µL
Barrier materialGold or titanium

Compatibility

MicroscopeObjective-type TIRF
DNA length20–50 kbp
TetheringSingle or double
Pump modeWithdraw, glass syringe
Sample needed~10 µL at nM concentration
Setup time< 40 minutes
View Full Specifications

Secure Checkout

All payments are processed by Stripe. Your card details are never handled by us and are encrypted end-to-end.

Ships from Netherlands

Flow cells are manufactured and shipped directly from 1NA in the Netherlands. Shipping options are presented at checkout.

Expert Support

Every order includes access to technical support by email. We're happy to help you get up and running quickly.
